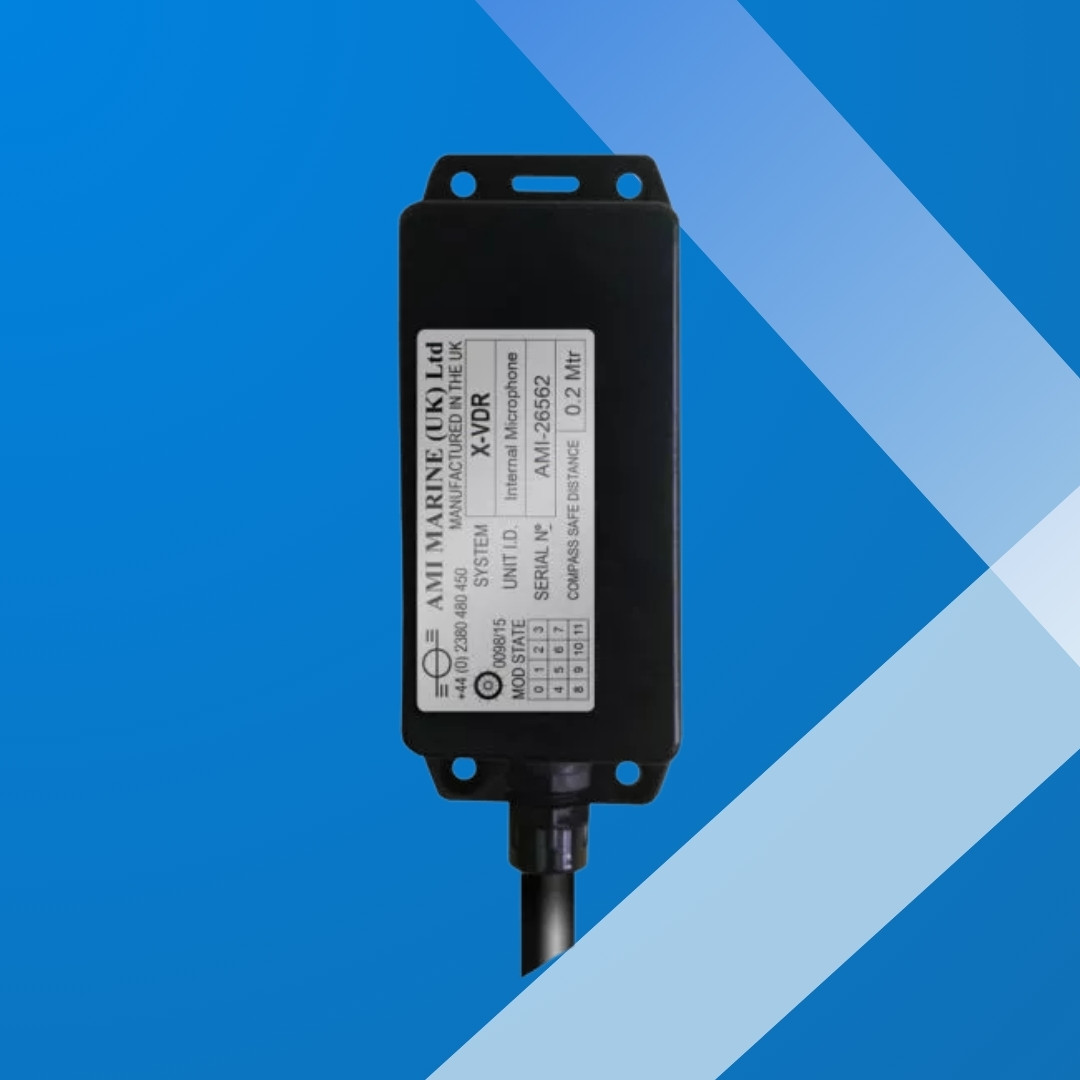

Internal Microphone for X2272/VR2272-B

Powered with 12Vdc, with 600-ohm balanced output and built-in test mode for use with the X2272 S-VDR and VDR system.

For systems that don’t require the test mode the microphone may be used with only power and audio out connected

Simple plug and socket connection allows for ease of installation, with four screw holes available on the exterior of the enclosure.

Full compatibility with the X2272 and X-VHFR
(Not compatible with the ‘X-VDR’ system)

• 12v DC supplied from the MEU
• 600-ohm balanced output
• 6 pin connection
• Self-test functionality
