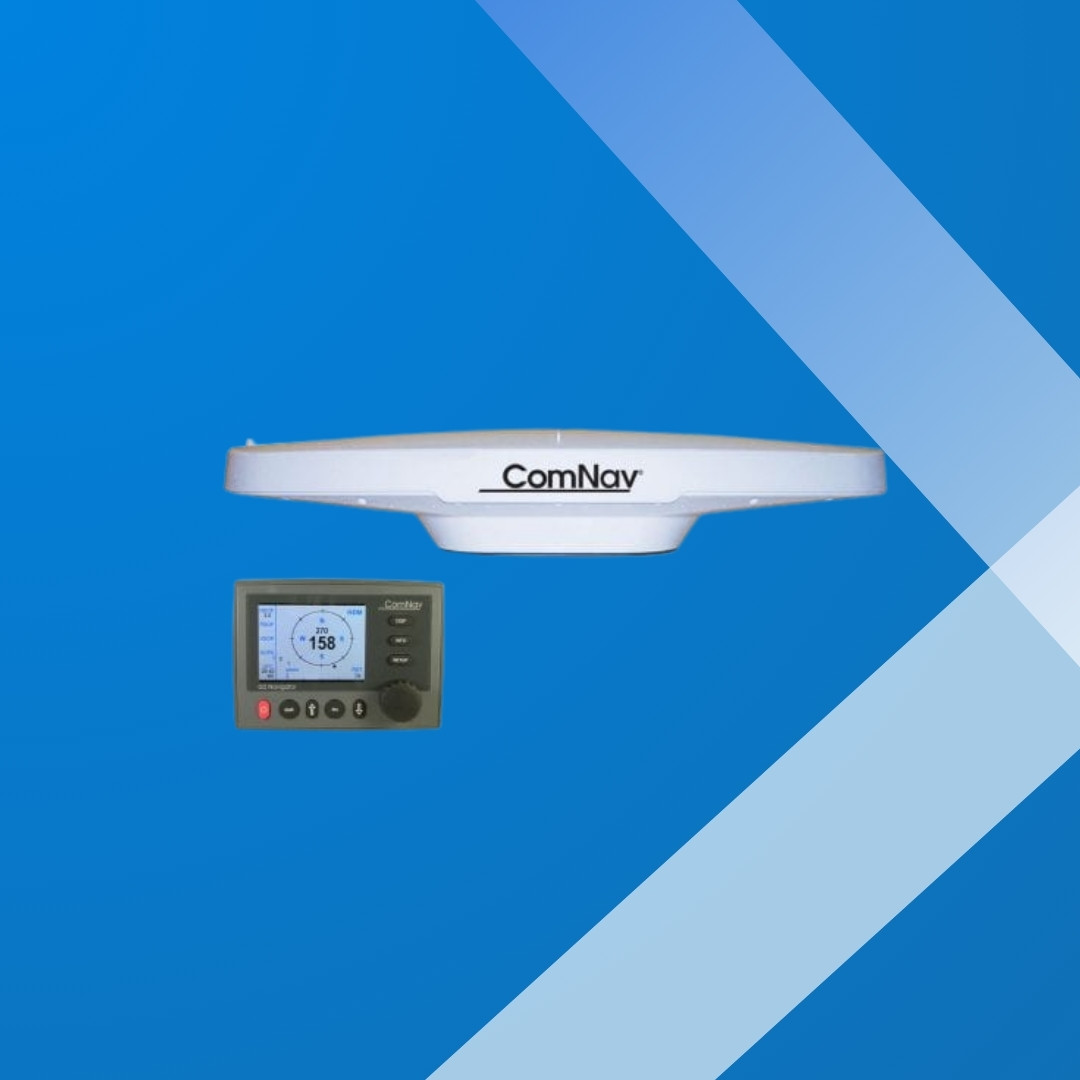

G2 / G2B GNSS Satellite Compass

New: Supports both GPS and GLONASS satellites for complete redundancy

  • New: Heading accuracy < 0.5° rms
  • New: Position accuracy < 1.0m 95% confidence (DGPS)
  • New: An integrated 9 Axis Inertial Measurement Core (IMC technology) provides enhanced roll, tilt and heading stability even during momentary loss of satellite signals
  • New: G3 color display system (optional)
  • New: Engineered enhancements to exceed sealed IP67 rating
  • New: Extended 2 year warranty
  • NMEA 0183 and NMEA 2000® interface
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Fully compatible with on board NMEA 0183 and NMEA 2000® RADAR, ECDIS, AIS, Cameras, SONAR, PC and Autopilots
  • Compact integrated surface mounting and pole mount
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • 15 meter serial cable standard (30 meter optional)
  • 6 meter NMEA 2000® Cable (Optional)
  • CE certified for EMI and RFI immunity
  • Worldwide service

        Accurate Heading, Position and Rate of Turn
